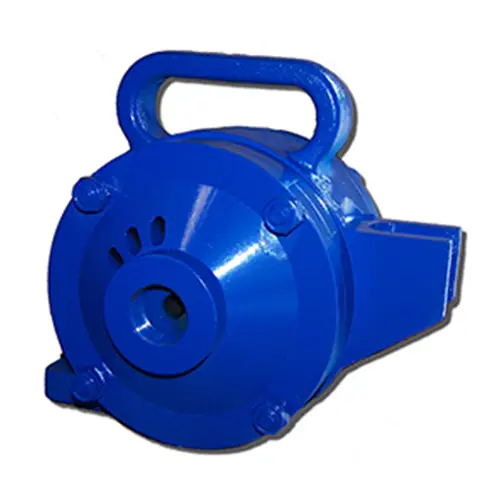

CR65W Roller Railcar Vibrator
CR65W Roller Railcar Vibrator with Wedge Bracket

CR65W Roller Railcar Vibrator

Category

$785.00

Product Details

Part#: CR65W

View Marketing Brochure

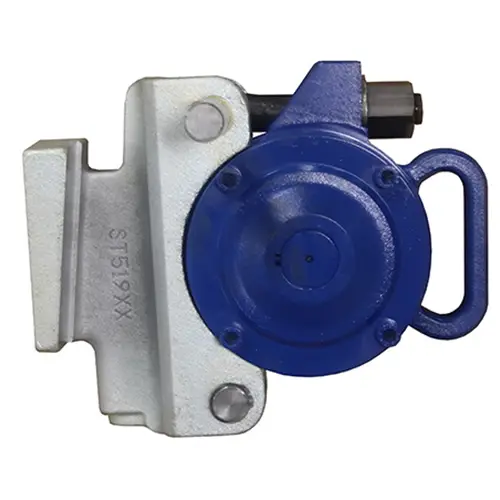

CR6500 Roller Vibrator With ARN-0184 Railcar Wedge Bracket.  Includes custom handle with rubber grips and air nipple.

Our line of pneumatic roller railcar vibrators offers a full range of frequency and force. With only three internal moving parts, these hopper railcar vibrators have an extended life and require minimal maintenance.

HOW IT WORKS: Air pressure activates the multi-slotted vane on two rollers (one within the other) which creates multiple vibrations on each orbit; this produces a powerful force at a high frequency.

Additional Information

Key Features

  • This series of roller railcar vibrators and shaker solutions is the industry standard for hopper railcar unloading.
  • Mounts easily to most standard wedge brackets for use with hopper railcar pockets.
  • There are no bearings, seals, or O-rings.
  • 3 moving parts (vane, roller-vane, inner/outer roller) provide for simple, long-wearing vibration requiring minimal maintenance.
  • Shaft, roller, and endplates are hardened and ground to assure high performance and reduced wear.
  • Frequency ranges between 2000 and 9000 vpm depending on the type of railcar vibrator and air pressure applied.
  • It produces a powerful output force ranging from 1000 pounds up to 7500 pounds
