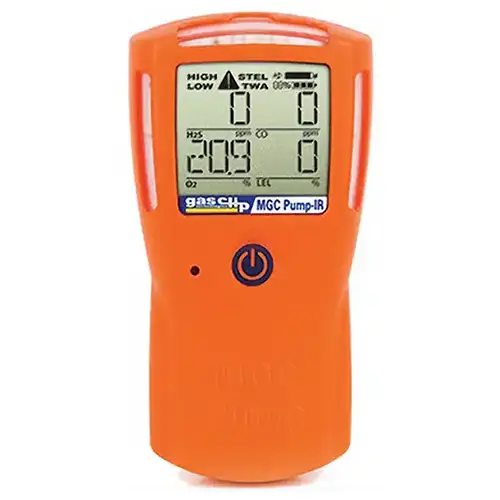

Multi Gas Clip Pump IR

Multi Gas Clip Pump IR

SKU MGC-IR-PUMP Category Gas Clip Monitors & Docks

$1,260.00

Product Details

View Datasheet

Operates with pump on for 52 hours continuously
Detects combustible gases (LEL), hydrogen sulfide (H2S), carbon monoxide (CO) & oxygen (O2)
Powerful but quiet pump draws from up to 75 feet
1-year calibration cycle saves valuable time & test gas
Detects accurately in oxygen-depleted environments
Low maintenance cost – infrared LEL sensor is immune to poisons
Simple-to-use one-button operation – large, easy-to-read screen
Lightweight & durable – alligator clip clamps on tight

Call for additional sensor configurations

Login to Shop Online

Additional Information

Specifications

Size • Weight: 5.7” H x 3.0” W x 1.5” D (147 x 78 x 38.3 mm) • 12.4 oz. (352 g)
Temperature: -4˚ to +122˚F (-20˚ to +50˚C)
Humidity: 5% to 100% RH (non-condensing)
Battery Life: Infrared version……..52 hours (continuous) | Pellistor version……..12 hours (continuous)
Charge: Time 4 – 6 hours
Alarms: Visual, vibrating & audible (minimum 95 dB) | Pump, Low, High, STEL, TWA & OL (Over Limit)
LEDs: 4 Red alarm bar LEDs | Yellow back-light (activated on button press) | Red back-light (activated on alarm condition) | Yellow maintenance notification LED
Display: High viewing angle alphanumeric Liquid Crystal Display (LCD)
Logs: 25 Bump tests, 25 events & 25 calibrations | Continuous 1-second data logging (typical capacity > 2 months)
Tests: Full-function self-test upon activation Sensors, battery and circuitry tests run continuously
Ratings: EMC Directive 2004/108/EC IP 67
Gas Inlet: 1/8” Stainless steel barbed fitting
Pump Draw: Sample from up to 75 ft. (23 m)
Sample Delay Time: Less than 1 second per 1 ft. (0.3m) with 1/8 in. ID tubing
