Versatile, safe, durable, and user friendly, our VMSAC Vacuum Mounted Vibrator series is perfect for applications where permanent installation is not possible.
These vibrators are available in an array of models, size, forces, and frequencies making them ideal for concrete forms, refractories, rail car and truck trailer hoppers, plant bins, other types of hoppers or any application that demands vibrator portability.
In addition to significantly reducing noise, air cushioning in our pneumatic Vibra-Might VMSAC Vibrators, prevents metal-to-metal impact– making them ideal for operation in hazardous areas. This also eliminates expensive damage from manual hammering on bins and hopper walls. These vacuum mount vibrators can handle light to moderate material loads.
The VMSAC Vacuum Mounted Vibrator series uses a one-piece, ductile iron housing and spring-less design which ensures long, effective life. It is also a safe option that eliminates the dangers of climbing into bins and hoppers to aid material flow. Its light weight significantly reduces ergonomic strain due to lifting on the end user.
Railcar application show above with 1200 VMSAC vibrator
VMSAC Vacuum Mounted Vibrator
In Use on Grain Trail Hopper
Benefits Include
- Can mount to any smooth surface; great on wood or aluminum
- Lightweight and portable
- Pneumatic (air) powered to enable operation in hazardous environments
- Enables easy pinpointing solutions to areas where material flow problems are occurring
- Eliminates destructive and expensive hammering on hoppers
- Single-stage vacuum generator using 1.55 SCFM
- Hand-held controls are easy to use: they include an integrated pressure regulator, a vibrator on/off switch via slide valve, and the vacuum is controlled via mini-ball valve attached to the vacuum generator
Recommended Applications
- Eliminate clogging, bridging, and sticking in bulk bins and hoppers where noise reduction is an issue
- Excellent option to aid the flow of materials in portable bins and hoppers
- Agitating dust collectors and/or filters to remove material build-up and promote better operation and reduce maintenance costs
- Takes the place of larger, heavier vibratory equipment for rail car applications
- Aid in unloading of portable stainless steel mixing bins in the pharmaceutical industry
Downloadable Resources
Contact an experienced Arnold Company representative for additional information about the VMSAC Vacuum Mounted Vibrator.
Heavy-Duty FP95 Vacuum-Mount Vibrator Offers Powerful, Lightweight, and Flexible Vibration Solution for Industrial Bins, Railcars, and Material Handling
Our FP95 Aluminum Body Piston Vibrator with Vacuum Mount pairs a powerful but lightweight piston vibrator with a heavy duty suction cup base to create a vacuum mount solution capable of taking on your toughest tasks. Using only 16 CFM of air at 90 PSI, the 4” piston provides output force of approximately 1,000 pounds and frequency of approximately 2,800 vpm. The vacuum mount allows the vibrator to be temporarily attached when you don’t have a pocket for a wedge bracket or a way to permanently attach a vibrator.
Strong enough to vibrate heavy loads, but only weighing 38 pounds, this vacuum mount solution is ideal for tough tasks like railcar vibration or other thick wall bins. The suction pads are activated with the simple turn of a lever, and the resulting suction securely holds the vibrator in place. When you are ready to vibrate, you simply move the separate slide valve.

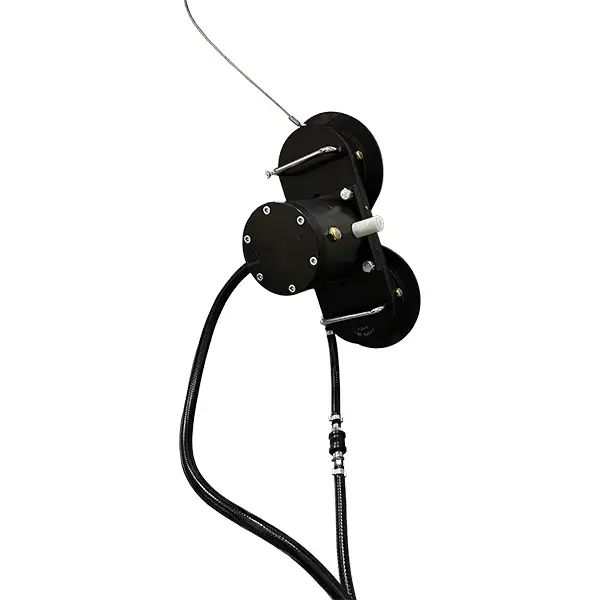

The FP95 Aluminum Body Piston Vibrator with Vacuum Mount
Benefits Include
- Eliminates clogging, sticking, and bridging
- No need for permanent mounting
- Can be used in multiple locations
- Eliminates hammering on hoppers
- Heavy impact force with lighter weight
Recommended Applications
- Pneumatic (air) powered for use in hazardous environments
- Separate slide valves for suction and vibrator operation
- Mounts to any smooth surface
- Lightweight: 38 pounds
- Footprint: 18”L x 8”W x 9”H
Downloadable Resources
Contact an experienced Arnold Company representative for additional information about the FP95 Aluminum Body Piston Vibrator.
