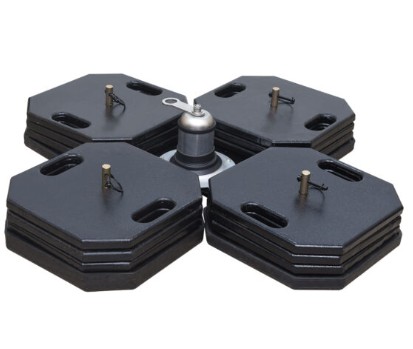

KStrong® Deadweight Rooftop Non-penetrating Freestanding Counterweight System

SKU N/A Categories Anchors, Fall Protection

Price range: $906.83 through $3,627.30

Product Details

PART	DESCRIPTION
A	UFA30061	KStrong® Deadweight Rooftop Non-penetrating Freestanding Counterweight System (Comprised of Parts B, C, & D)
B	UFA30061(01)SUB1	Set of 8 Casted Dead Weight Upper Plates
C	UFA30061(02)SUB2	Set of 4 Molded Dead Weight Bottom Plates with Locking Stud and Cotter Pin
D	UFA30061SUB3	Main Plate and Shock Assembly for the Deadweight Anchor Frame

Part

Clear

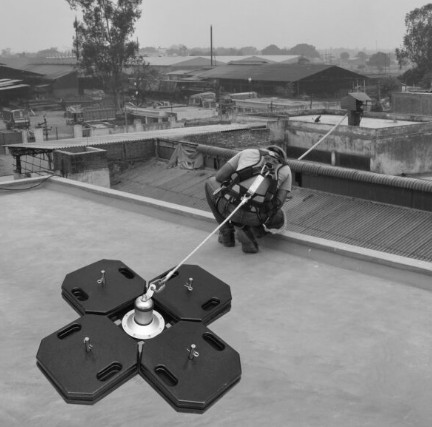

Deadweight Rooftop Non-penetrating Freestanding Counterweight System is designed to be used as a anchorage point where structural anchors are not available for the users working near a potential fall hazard.
Comes with polymer base plate to provide better grip and stability with the mating surface.
Compatible with different roof surfaces as bitumin, asphalt and concrete.
Equipped with a central shock absorbing post which deploys in the event of a fall.
Anchor post can be used in different configurations to perform various activities including the following:

Counter Weight and Cross Arm – Alloy Steel
Shock Absorbing Post – Stainless Steel

Counter Weight and Cross Arm – Powder Coated
Shock Absorbing Post – Electropolished / E-coated

12 kN

881.8 lbs. ± 0.02 lbs. (400kg ± 0.01kg)

Meets or Exceeds EN 795:2012 Type E
