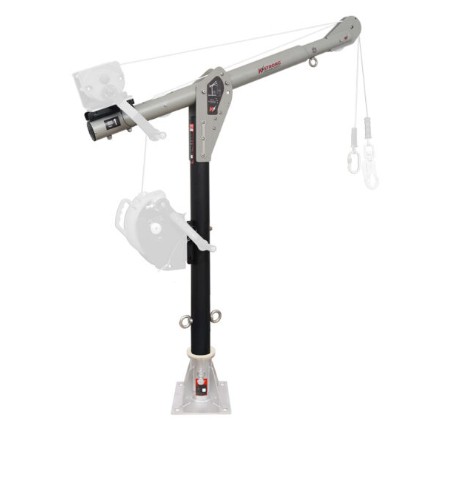

KStrong® Megadavit™ Floor Mount Basic Kit. Includes Floor Mount Column Mast Receiver, 54 in. Column Mast, and 3 ft. Cantilever Boom Arm with Winch Bracket

SKU UFT551021BK Categories Fall Protection, Rescue and Descent

$4,403.36

Product Details

KStrong® Megadavit™ Floor Mount Basic Kit. Includes Floor Mount Column Mast Receiver, 54 in. Column Mast, and 3 ft. Cantilever Boom Arm with Winch Bracket.

Additional Information

DESIGN:

The KStrong® Megadavit™ Floor Mount Kit breaks down into two (2) components for easy storage, transport and setup. No tools are required for assembly.
The modular design allows the use of various fixed and portable bases and an optional mast with extensions.
Cantilever arm comes with 3 adjustment positions for the user to adjust the height as per the requirement.
An ideal choice to provide overhead anchorages in large holes of confined space.
Removable legs for easy transportation and installation purpose.
Multiple anchorage points for rescue applications.
Inbuilt swivel feature, davit column assembly can be rotated up to 360° by removing the locking pins provided to lock column.
Floor mount base is designed to be mounted to concrete or steel structure.
Base installation must be approved to local regulations by a qualified engineer.

MATERIAL:

High Strength and Durable Aluminum Alloy

MAXIMUM LOAD CAPACITY:

1102 lbs. (500kgs)

FINISH:

ED coated grey.

SYSTEM STRENGTH:

15 kN (3300 lbs).

WEIGHT:

87.13 lbs ± 0.22 lbs (39.52kgs ± 0.10kgs)

RELEVANT STANDARDS:

Conforms to EN795:2012 Type B, AS/NZS 5532:2013

HEIGHT ADJUSTMENT AND REACH:

	UPPER	MIDDLE	LOWER
Distance from Column	26.57 in. (0.675m)	33.27 in. (0.845m)	36.22 in. (0.92m)
Height of Arm	74.8 in. (1.9m)	63.78 in. (1.62m)	50.39 in. (1.28m)
