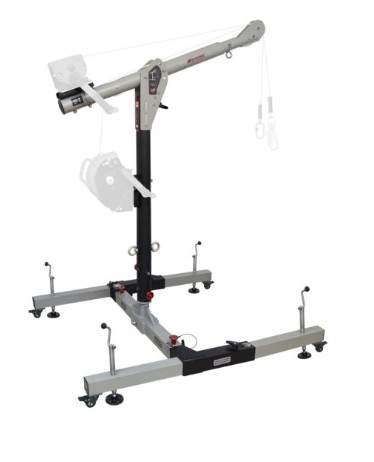

KStrong® Megadavit™ H-Base Basic Kit. Includes H-Base Frame Assembly, 54 in. Column Mast, and 3 ft. Cantilever Boom Arm with Winch Bracket

SKU UFT551011BK Categories Fall Protection, Rescue and Descent

$7,218.46

Product Details

The KStrong® Megadavit™ breaks down into five components for easy storage, transport and setup. No tools are required for assembly.
The modular design allows the use of various fixed and portable bases and an optional mast with extensions.
Cantilever arm comes with 3 adjustment positions for the user to adjust the height as per the requirement.
An ideal choice to provide overhead anchorages in large holes of confined space.
Removable legs for easy transportation and installation purpose.
Multiple anchorage points for rescue applications.
Foldable legs for easy transportation and installation purpose.
Inbuilt swivel feature, davit column assembly can be rotated up to 360° by removing the locking pins provided to lock column.

High Strength and Durable Aluminum Alloy

Minimum Opening Ø43.3 in. (1100mm) & Maximum Opening Ø59.44 in. (1500mm)

1102 lbs. (500kgs)

ED coated grey.

15 kN (3300 lbs).

138.28 lbs ± 0.22 lbs (62.72kgs ± 0.10kgs).

Conforms to EN795:2012 Type B, AS/NZS 5532:2013

	UPPER	MIDDLE	LOWER
Distance from Column	26.57 in. (0.675m)	33.27 in. (0.845m)	36.22 in. (0.92m)
Height of Arm	89.76 in. (2.28m)	78.74 in. (2.0m)	65.35 in. (1.66m)
