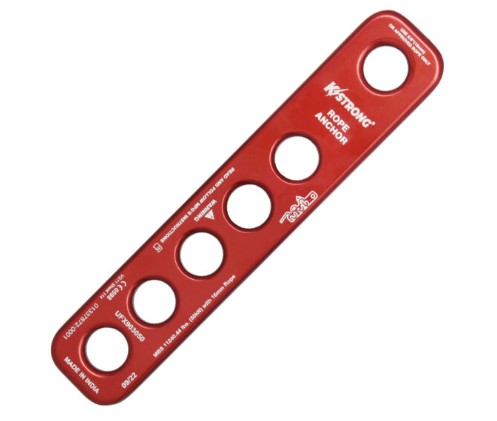

KStrong® Rope Termination Anchor

SKU UFX903050 Categories Anchors, Fall Protection

$67.38

Product Details

KStrong’s Rope Termination Anchor lets you combine an anchor connector with a vertical lifeline system. Just thread the rope through the Rope Termination Anchor as instructed, and either hook it with a suitable carabiner to another anchor connector, or loop it around a compatible anchor point and pull the rope through the Rope Terminatino Anchor to make a self-sufficient system. It works great with hard to reach fixed anchors.

Additional Information

DESIGN:

Provides an anchor point for lifelines using the top hole for connecting to anchorage and the others for threading the rope.
Quick emergency exits, lowering from one level to another level below using an escape rope and connecting hardware.
Suitable to use with 5/8” (16mm) 3-strand double braid Rope or 7/16” (11mm) kernmantle rope lifeline.
The plate provides a quick reusable field termination that eliminates the need for knots, splices, eyes or factory terminations on your ropes

MINIMUM BREAKING STRENGTH:

23 kN (5000 lbs.)

MATERIAL:

High Strength Aluminum Alloy

FINISH:

Powder coated

WEIGHT:

0.55 lbs. ± 0.02 lbs. (248.5gm ± 10gm)

RELEVANT STANDARDS:

Meets or Exceeds all applicable OSHA 1926 Subpart M, OSHA 1910, ANSI Z359.1-2007, and ANSI A10.32-2012.
