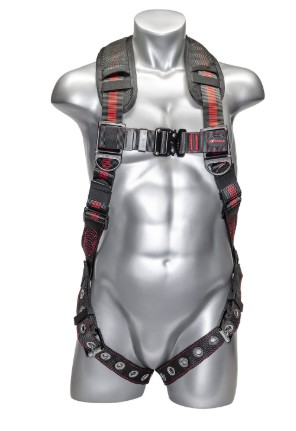

KStrong® Kapture™ Elite+ 5-Point FBH, Enhanced Dorsal D-ring, TB Legs, QC Chest, Shoulder Pad, All Black Fittings (ANSI) (UFH15201GQ)

DESIGN:

• One dorsal attachment D-ring for fall arrest.
• Adjustable Shoulder, Leg, and Chest straps.
• Grommeted leg straps.
• Equipped with shoulder pad.

WEBBING:

Material: Polyester
Width: 1.73 in. ± 0.04 in. (44mm ± 1mm)
Breaking Strength: 5000 lbs.

STITCHING THREAD:

Material: High-tenacity Polyester

METAL COMPONENT:

Material: Alloy Steel
Finish: PCB

CAPACITY RANGE:

ANSI – 130 – 310 lbs.; OSHA – 420 lbs.

RELEVANT STANDARDS:

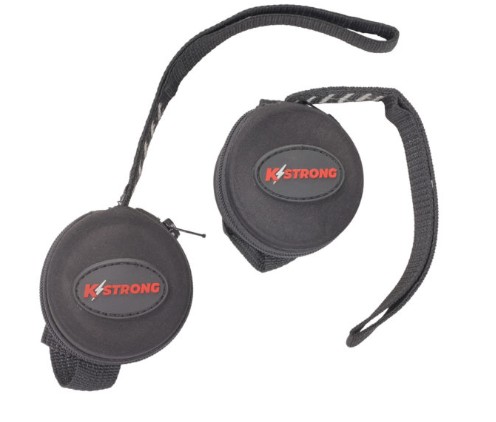

DESIGN:

• 0.79 in. (358gm) polyester webbing
• Formed pouch for holding the straps
• Textile loops are given on the straps for adjustment at different heights

WEBBING:

Material: Polyester
Width: 0.79 in. ± 0.04 in. (20.06mm ± 10.16mm)
Breaking strength: 445lbs. (200 Kg)

STITCHING THREAD:

Material: High tenacity polyester

METAL COMPONENTS:

Material: Steel
Plating: Zinc plating
Finish: Deburred & Polished

WEIGHT:

DESIGN:

• An ideal anchorage device to be fixed on wooden beams used in roofing.
• Consists of two steel flaps each having 16 holes which can be fitted on the two sides of a wooden beam by means of nails inserted in the holes
• The D-Ring can be safely used as an anchorage point.

CABLE:

Material : High Strength Alloy Steel
Minimum Breaking Strength: 5000 lbs.
Finish: Power Coated or Zinc Plated

WEIGHT:

2.39 lbs. ± 0.22 lbs. (1084 gm ± 100 gm)

RELEVANT STANDARDS:

DESIGN:

• This lifeline is made up of high strength Polysteel Twisted rope.
• The diameter of the rope is 5/8”.
• It is provided with snap hook (PN 146) spliced at one end and the other side a stop knot.

MATERIAL:

Polysteel

LENGTH:

25 ft.

WEIGHT:

3.23 lbs. ± 0.02 lbs. (1465 gm. ± 10 gm)

RELEVANT STANDARDS:

DESIGN:

• Connected with shock pack PN 500 and has snap hook as attachment.
• 1.73” (44mm) wide tear webbing for energy absorption.
• 1.73” (44mm) wide polyester webbing as backup strap and stitched around the free end of tear webbing to from loops for attachment. The entire assembly folded and packed in thick Polyethylene sleeve with synthetic labels.
• Rope Grab is used for rope access.

WEBBING:

Material: Polyester
Width: 1.73” ± 0.04” (44 ±1 mm)
Breaking strength: 6000 lbs. (2722kg) -Min

STITCHING THREAD:

Material: High-tenacity Polyester

WEIGHT:

2.60 lbs. ± 0.02 lbs. (1179 gm. ± 10 gm)

RELEVANT STANDARDS:
