KStrong® Single Seam Roof Anchor (ANSI)

SKU UFA55370 Categories ,

$122.80

Product Details

DESIGN:

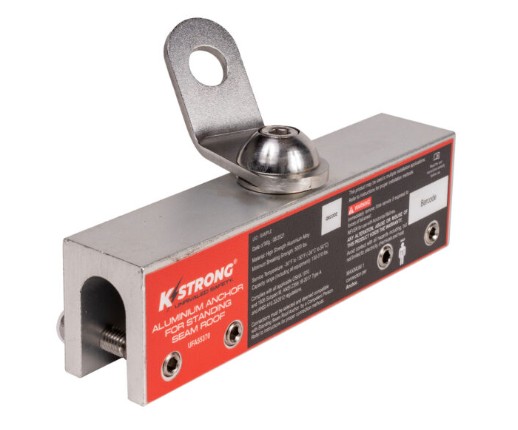

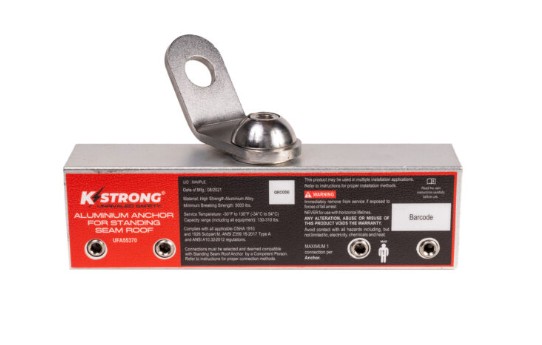

  • Roof top anchor device is designed to be fixed on metal standing seam and I beams to install horizontal life lines.

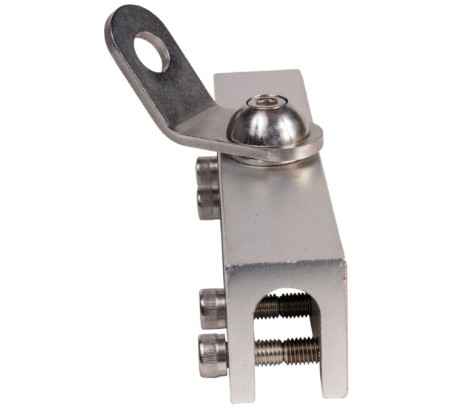

  • Trolly lateral hinge (Swivel anchorage eye) on the top provides universal connection and is used as an anchorage point.

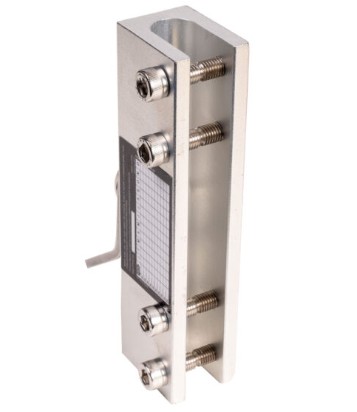

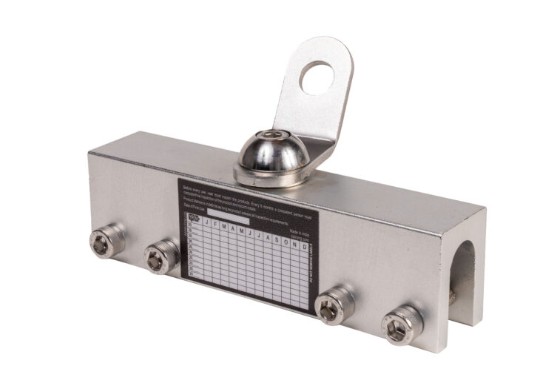

  • The anchor is fixed on to the roof top by use of Screw set.
  • Can be installed on up to 0.91 in. (23 mm) bulb size on standing seam roof.

Additional Information

MATERIAL:

Aluminum Alloy & Stainless Steel

FINISH:

Natural Silver, Anodized

MINIMUM BREAKING STRENGTH:

23kN

WEIGHT:

1.84 lbs. ± 0.02 lbs. (834 gm ±10 gm)

RELEVANT STANDARD:

Meets or Exceeds ANSI/ASSP Z359.18-2017
